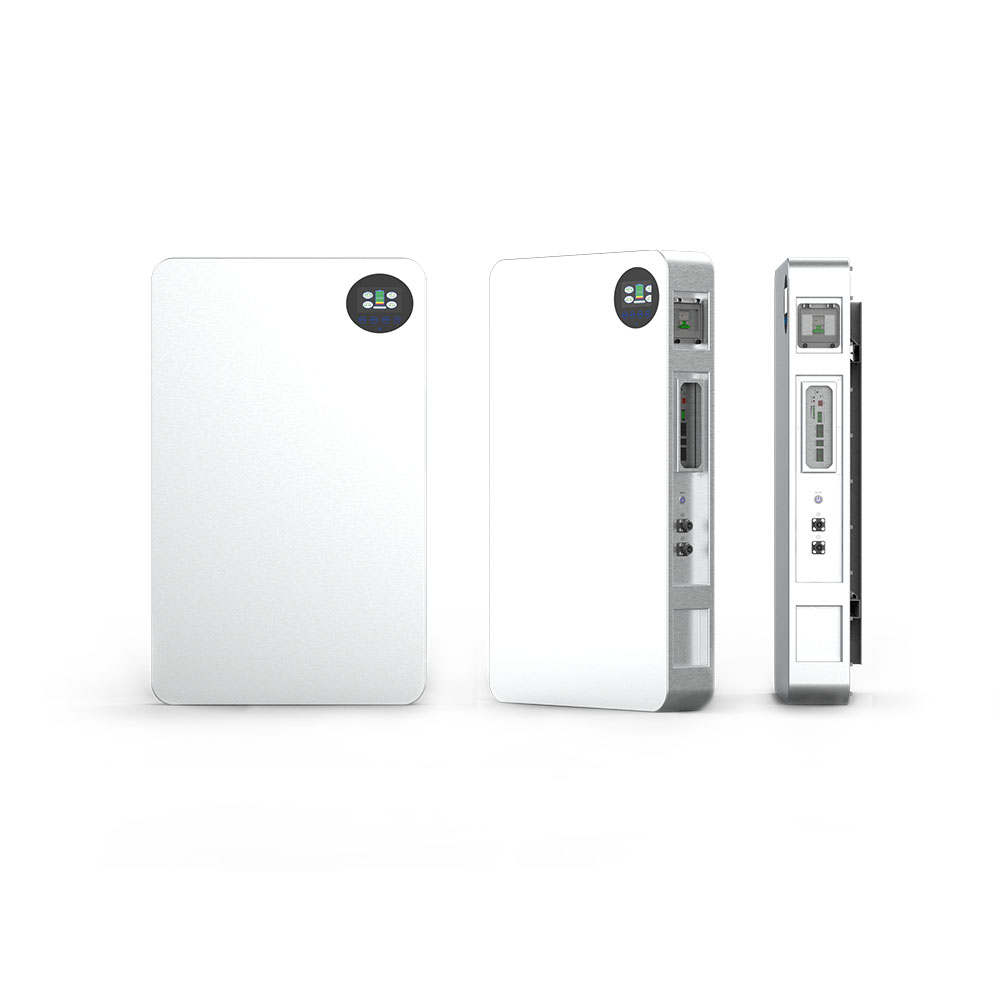

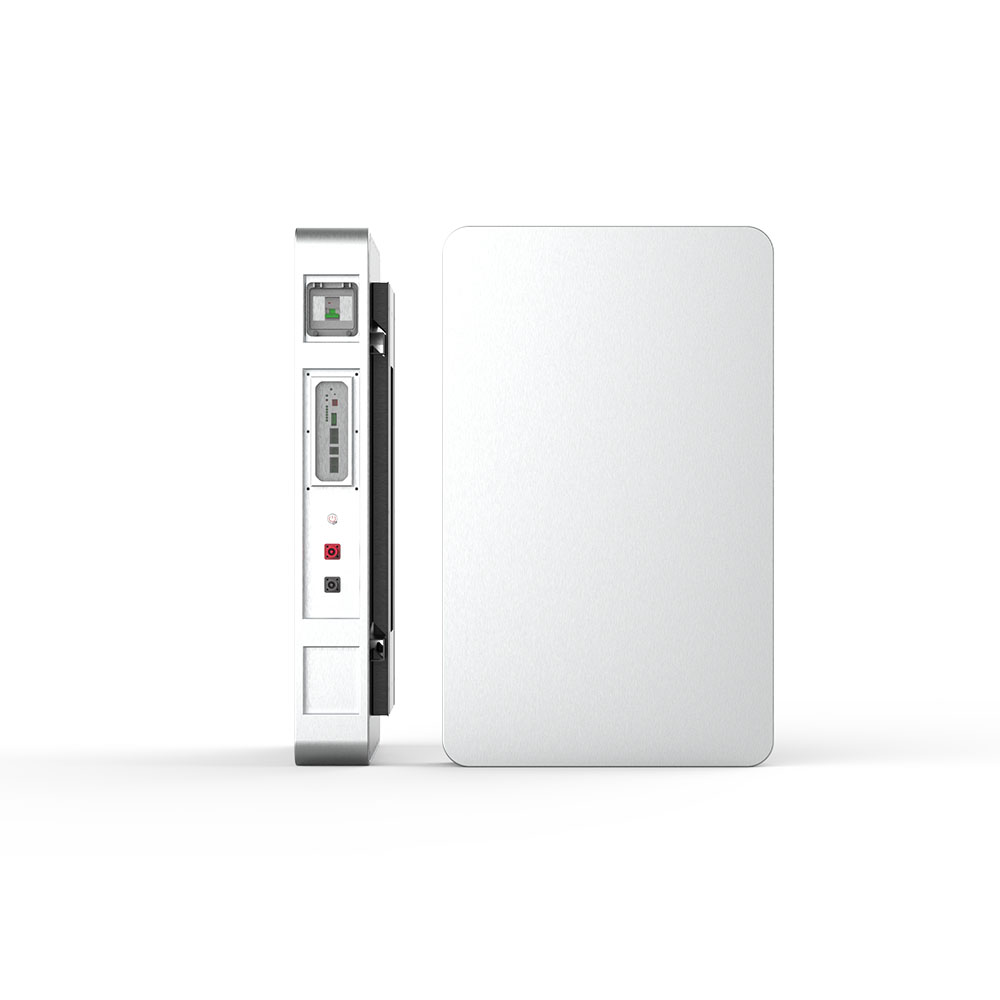

KWEIGHT KW 5&10KWh-IP55 are increasingly favored by home energy storage users.
We use lithium iron phosphate battery, which is more safe and long life, and has rich functions to meet most applications. The product range is from 100 to 200Ah, and supports OEM and ODM. Welcome to contact us!
Easy to operate
Easy to move
Super long service life
Perfect function protection is safer
Efficient use of space
Support parallel use
| Product Model | KW 5KWh-IP55 | KW 10KWh-IP55 |
| Rated Voltage/ V | 51.2 | |
| Rated Capacity/ AH | 100 | 200 |
| Stored Energy/Wh | 5120 | 10240 |
| Recommended Charging Current/ A | 60 | |
| Maximum Discharge Current/ A | 100 | |
| Charging Voltage/ V | 58.4 | |
| Discharge Cut-Off Voltage/ V | 43.2 | |

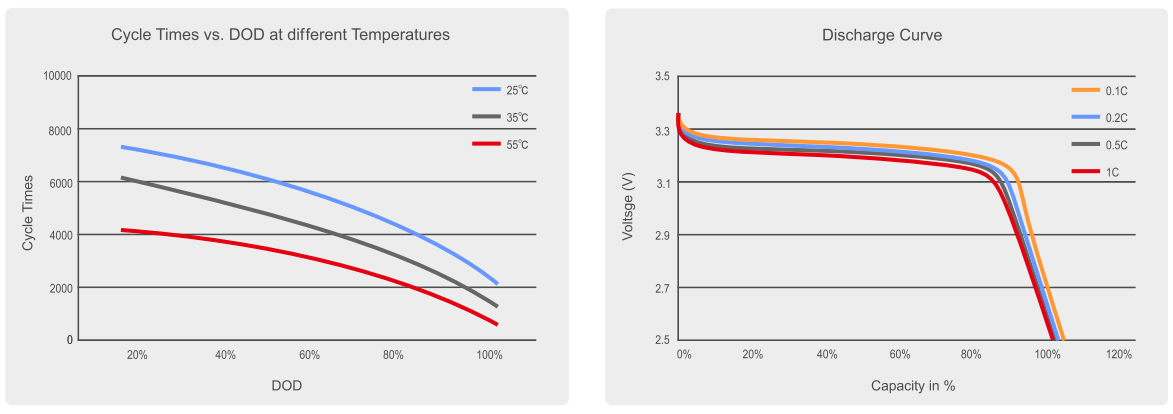

| Cycle Life | 4000 cycles @25℃ 0.5C, 80%DOD | |
| Size(L*W*H)/ mm | 620*580*135.5 | 980*600*135.5 |
| Weight/ KG | Approx.55 | Approx.96 |
| Power Switch | Standard configuration | |
| Fittings Of a Machine | Connecting line*2PCS, Communication*1PCS | |
| Bluetooth | Optional | |
| Service Temperature | Charging: 0~45 ℃ Discharge: - 20~55 ℃ | |
| Custom Made | Support OEM and ODM | |

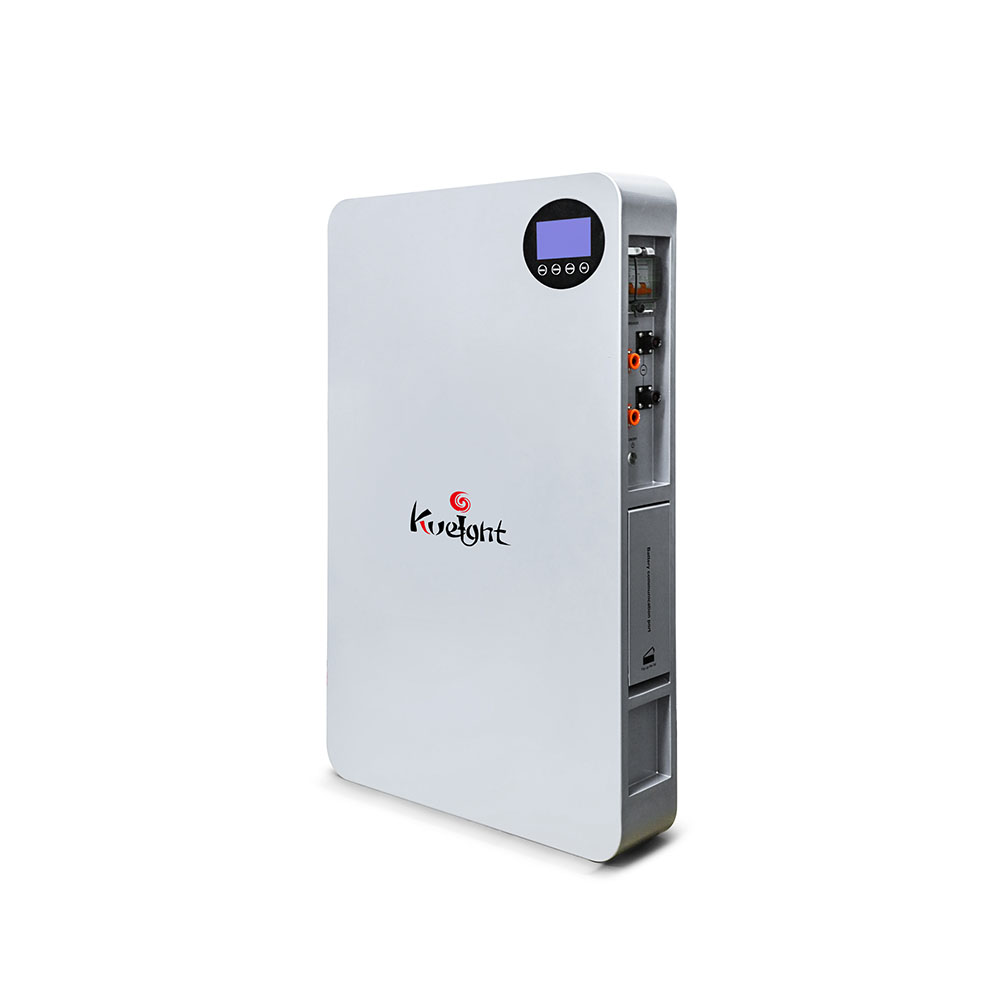

Wall-mounted Battery 10KWh
Rated Voltage: 51.2V
Consultation
Customized Light Storage Charging Large Energy Storage Products
Rated Voltage: --
Consultation
