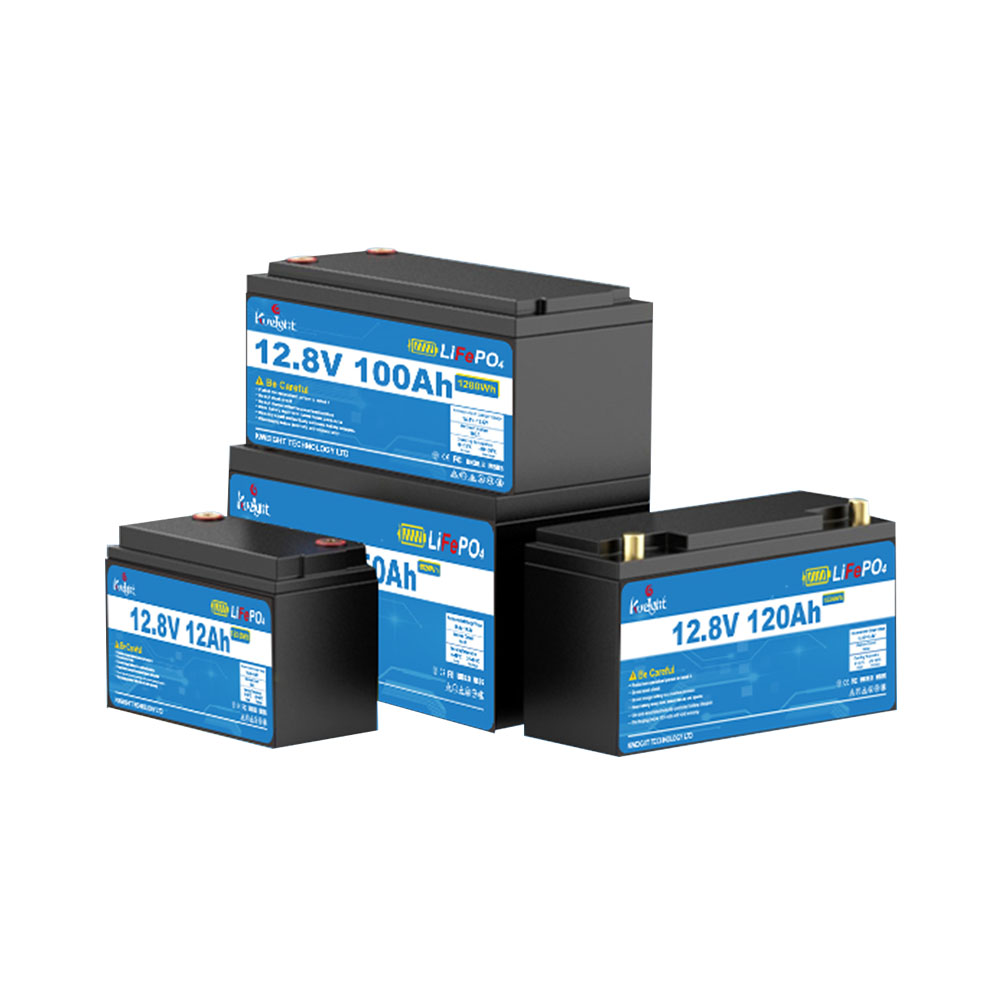

12V LiFePO4 Series

Lithium Iron Phosphate Battery

Lithium iron phosphate battery (LiFePO4) is a new type of lithium ion battery with LiFePO4 as the cathode material and generic backing as the anode. It has strong safety performance, high energy density, low cost and other characteristics, and is widely used in photovoltaic energy storage, communication base stations, ups and other energy storage fields.
Download Contact Us

Product Features

Nomimal voltage: 12.8V;

Rated Capacity: 6Ah ~ 460Ah;

Operating temperature range: -20 ~ 55 °C;

The design life is 10 years;

Adopt safe lithium iron phosphate battery cells and pass many domestic certifications;

With overvoltage, over-discharge, over-current, short-circuit and other protection, and optional blue monitoring;

It has the function of voltage equalization, improves the conductivity of the cell, and ensures the charge and discharge capacity of the cell;

No less than 4000 cycles of charge and discharge in the life cycle;

High energy density, about 40% of the weight of lead-acid battery with the same capacity;

IP65 protection level: excellent anti-corrosion performance, and the normal use of the battery will not be affected by blowing and drenching;

Installation convenience: the size matches the lead-acid battery, plug and play.

Specification Model

Battery TypeRated Voltage (V)Rated Capacity (Ah)Dimension (mm)Weight (Kg)
LenghtWidthHeight
QL1206
12.8615165941.2
QL121212.81215199993.9
QL124012.8401981661705.76
QL126012.8602571322008.8
QL1212012.812033017221516
QL1215012.815048317024019.2
QL1225012.825052026922029
QL1240012.840052026922036
QL1246012.846052026922040
