KW Series

General Battery

KW Series products are 6V, 12V monolithic AGM valve regulated sealed lead -acid battery and universal design for battery products. It has advantages incuding wide capacity range, mult-type, safty reliable seal, small internal impedance, low self-discharge, sealed and high efficient reaction, dean and environment protection, safe,  clean, easy installation and so on. It is widely used in various fields of communication systems, power systems, uninterruptible power supply (UPS), solar systems, fire alarms and security systems.
Download Contact Us

Product Features

Nomimal voltage: 6V, 12V

Rated Capacity: 1.4Ah ~ 250Ah

Operating temperature range: -15 ~ 45 °C

The design life is 5 years

Using special polybasiclead base alloygrid with high corrosion resistance and charge acceptance

Using new special process sheet formula to improve the utilization of active material

Using high quality superfine glass fiberliquid-suction battery technology to exceed 99% gas recombination rate

High-strength ABS plastic battery slot and cover with features of compact structure, corrosion resistant, impact resistance and anti-vibration and so on

Small internal impedance, excellent performance when high current discharge

Low self-discharge, wide operating temperature range

Using multiple sealing technologies to ensure no leakage, no acid mist escaping to keep safe and reliable

Using strict production process, unit voltage balance is strong

Free maintenance, without adding water rehydration

The battery has full chargedbefore leaving the factory, and transportation is safestems, fire alarms and security systems

Standard: GB/T 19638.1.2, IEC 60896-21/22, YD/T 799-2010

Specification Model

Battery TypeRated VoltageRated CapacityDimensionWeightPositionType
LenghtWidthHeight
VAhmmmmmmKg
KW6-2.862.866341050.51CF1
KW6-3.263.512533650.62CF1
KW6-767.0151351011.05CF1/F2
KW6-12612.0151501011.53CF1/F2
KW12-1.3121.49743560.55AF1
KW12-2.3122.517834660.78CF1
KW12-2.9122.979561040.96AF1
KW12-4124.090701061.35CF1/F2
KW12-7127.0151651002.05AF1/F2
KW12-121212.0151981013.00CF2
KW12-381238.019616517511.00DM5
KW12-551255.022913822815.00CM5
KW12-651265.035016817919.00DM5
KW12-10012100.033017223527.00CM6
KW12-12012120.040617323632.50CM8
KW12-15012150.048317024040.00CM8
KW12-20012200.052224024556.00AM8
KW12-25012250.052227024566.00AM8

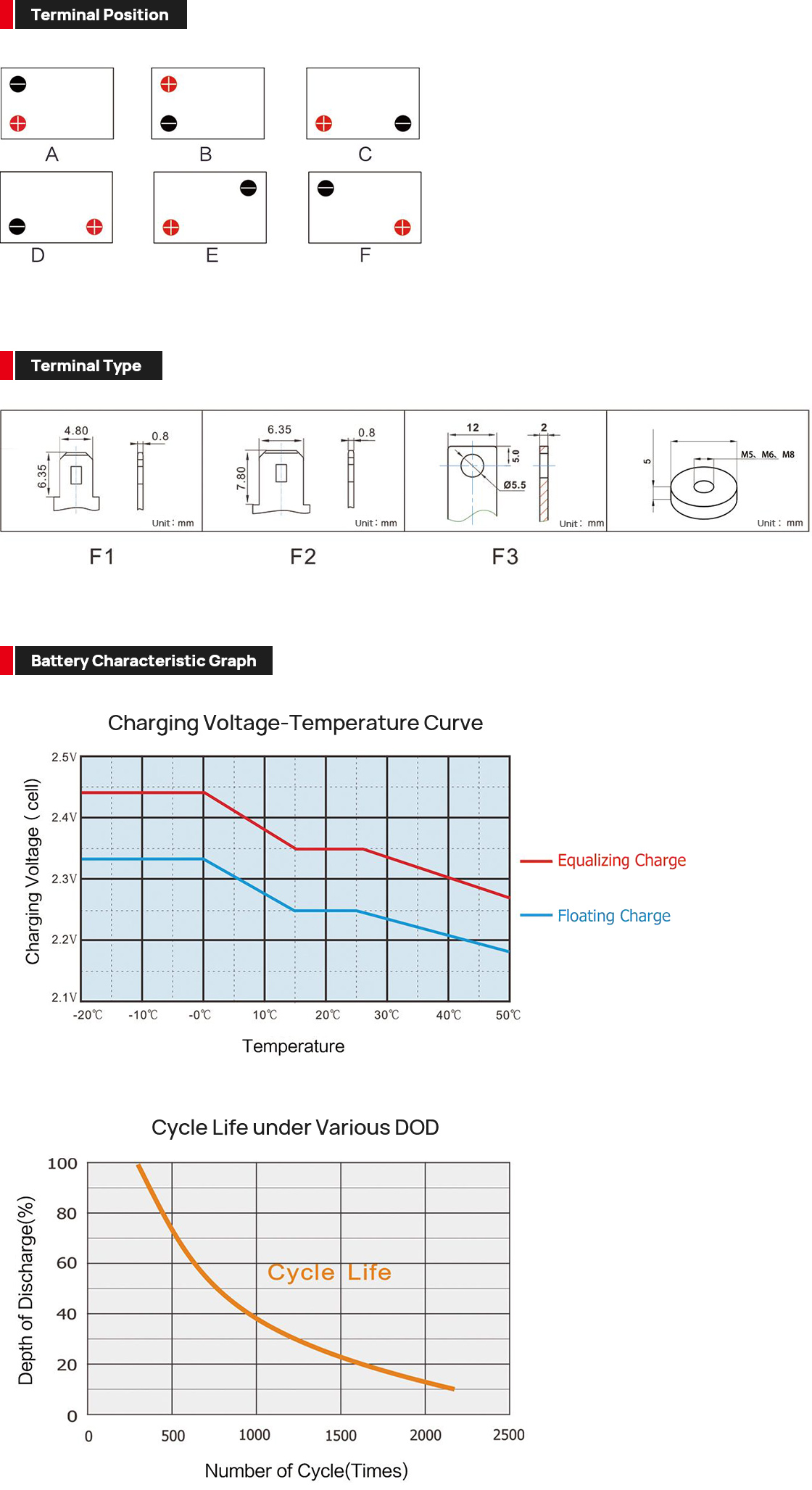

Structural Parameters

KW-series_03
