KL Series

Long Life Battery

KL(long life series) are valve-regulated maintenance-free lead-acid batteries that feature fixation type, high-capacity, and long-life, which specially designed for large-scale electrical equipment. They are made of high-performance and excellent corrosion resistance alloy casting to improve the deep discharge performance. And special technology of pole seal is adopted to prevent electrolyte leakage; The positive plate of the battery has a special formula, which makes the battery good receptivity during charging. This lines of battery covers a wide range of sizes and offers single cells with capacities from 150Ah to 3000Ah. It can be horizontal or vertical installed to save space and easier to detect and maintain. This series of battery is suitable for telecom, UPS, energy storage, power and other applications.
Download Contact Us

Product Features

Nominal voltage: 2V

Rated capacity: 100Ah~3000Ah

Operating temperature range: -20~50°C

The design life is 15years

Low self discharge: <3%

Adopt High porosity unique technique, well performance of large current discharge

Superb thinnest fiberglass imbition battery technique, up to 99% gas combination rate

Low internal resistance, well performance of large current discharge

Adopt multiple sealed technique, ensure no leakage

Adopt strict technique, each cell has well balance ability

Compact structure, good ability to resist vibration, high power

Free maintenance, no need to add water or electrolyte

Design compactly, maintain conveniently

Standard: GB/T 19638.1.2, IEC 60896-21/22, YD/T 799-2010

Specification Model

Battery TypeRated VoltageRated CapacityDimensionWeightPositionType
LenghtWidthHeight
VAhmmmmmmKg
KL2-1002100171722056.5HM8
KL2-15021501721022277.0HM8
KL2-2002
21017311136711.5HM8
KL2-300230017115136717.0HM8
KL2-400242021117636720.0IM8
KL2-500251024117636425.5IM8
KL2-600261030117536638.0IM8
KL2-800280041017636542.5JM8
KL2-10002102047517536553.0JM8
KL2-15002150040135137877.0KM8
KL2-200022030491351383120.0LM8
KL2-300023000712353382146.0LM8

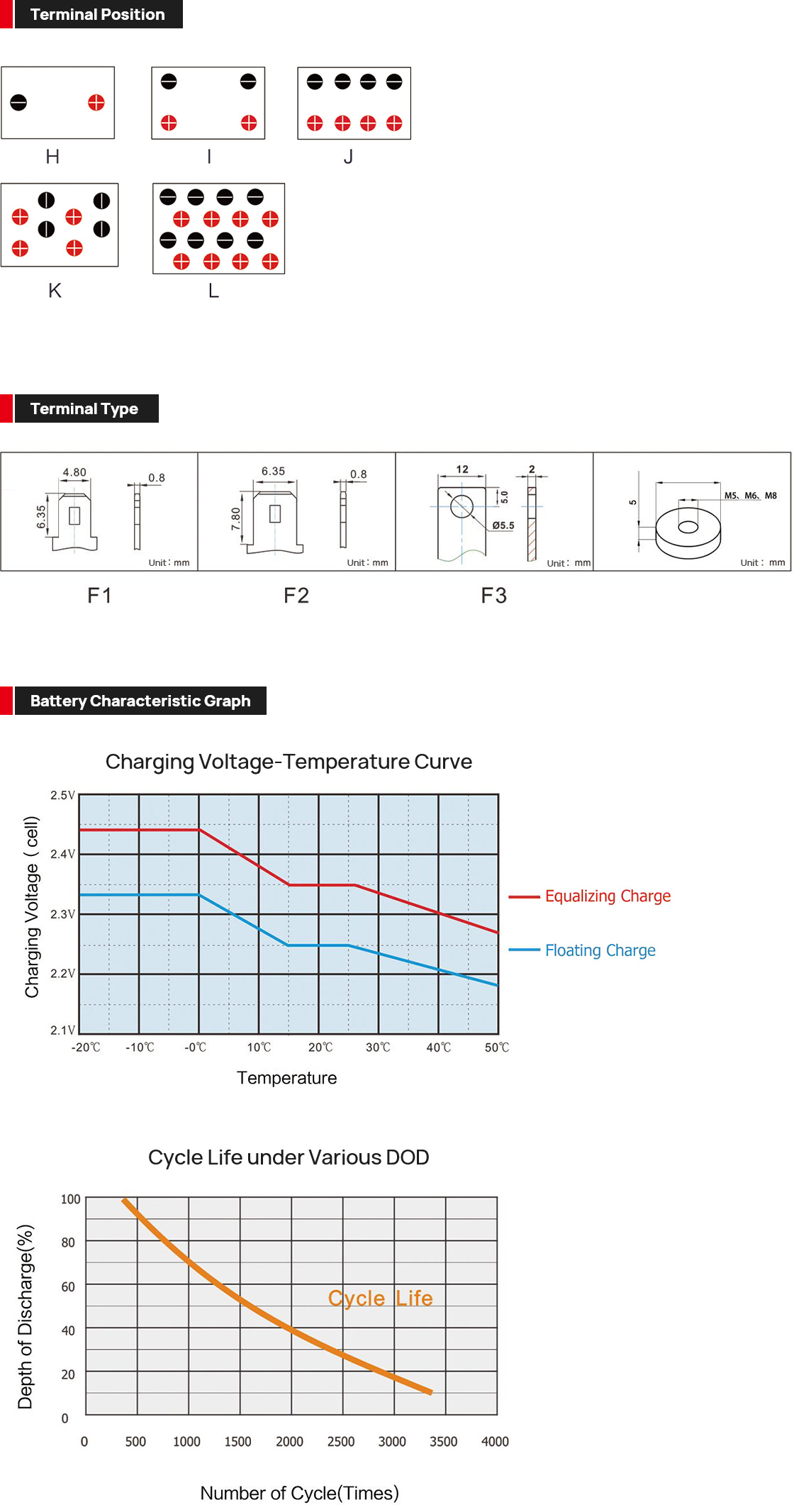

Structural Parameters

KL-series_03
